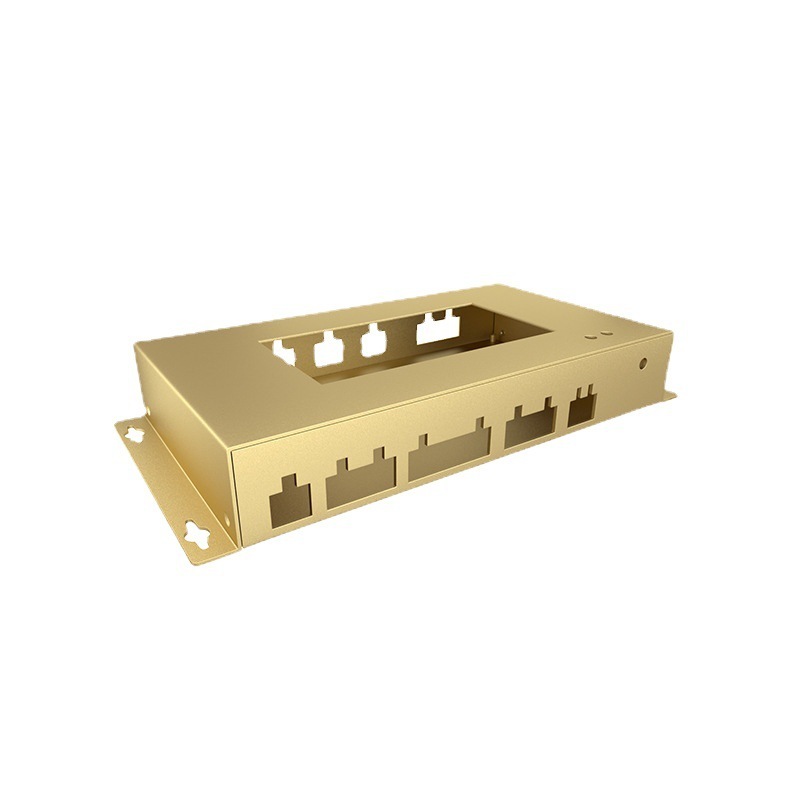

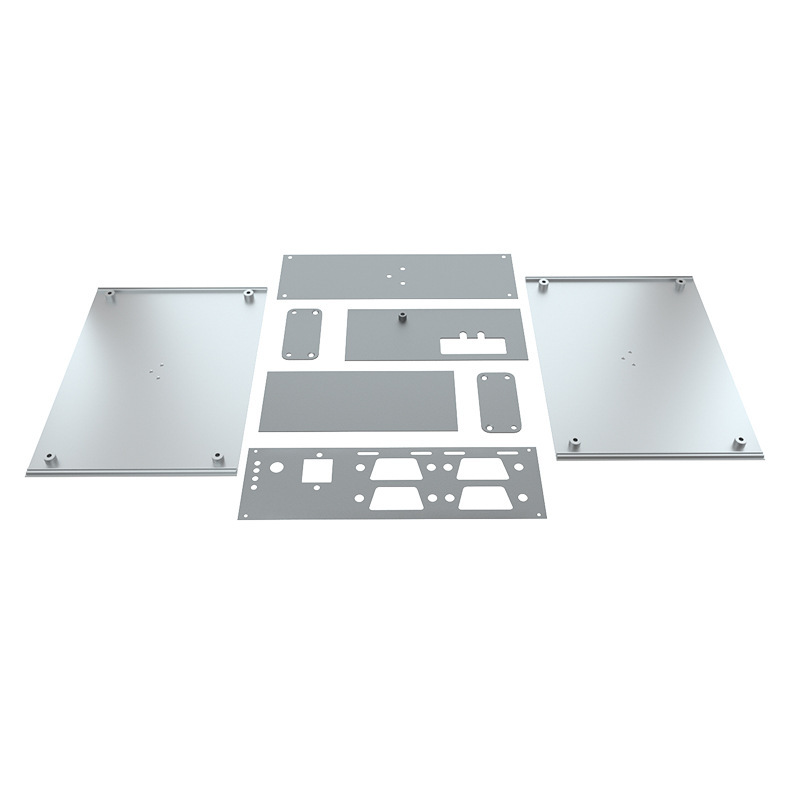

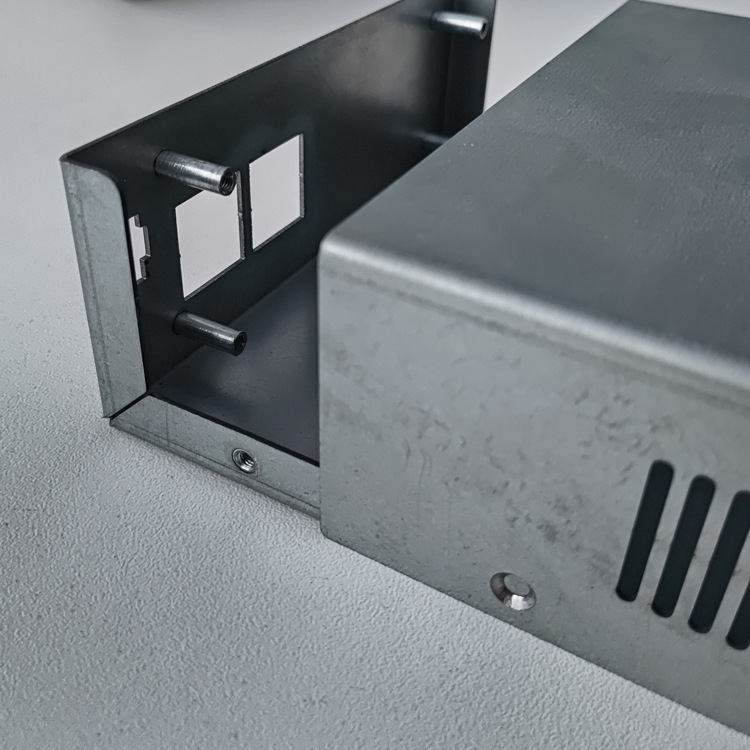

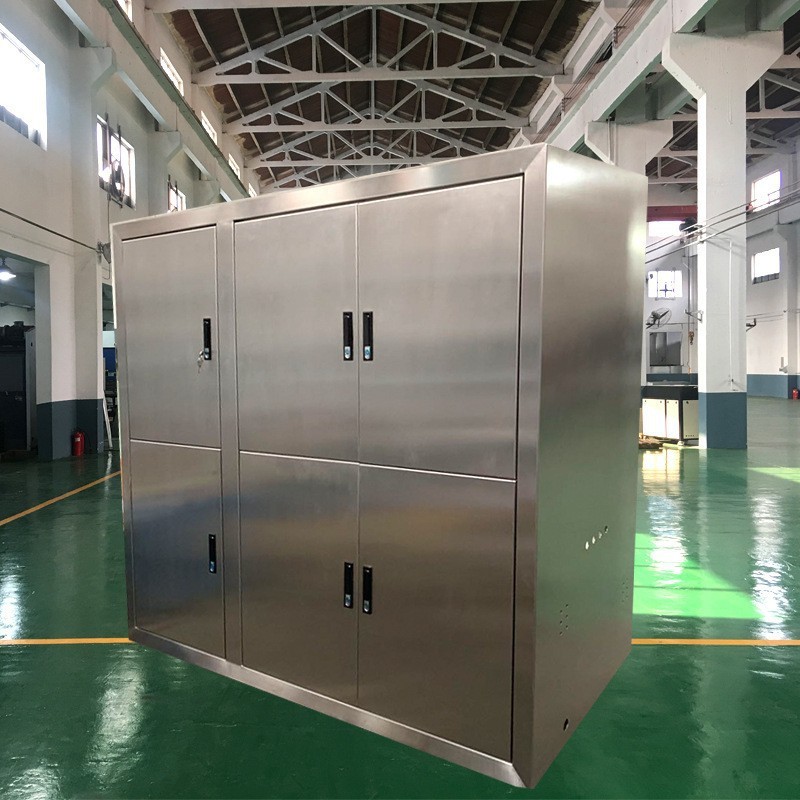

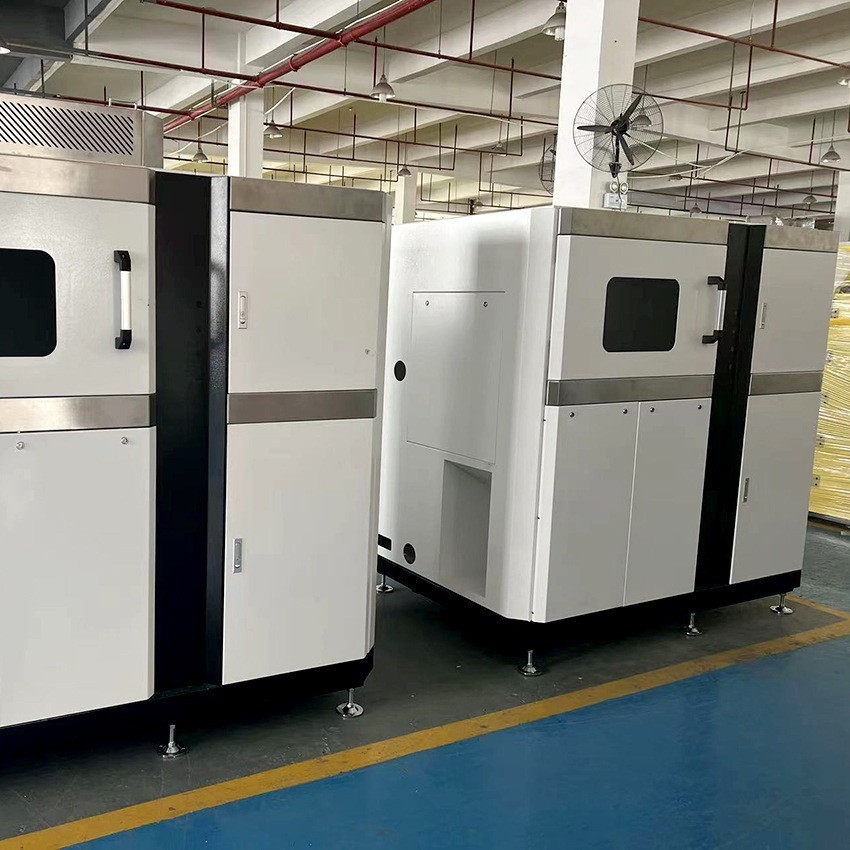

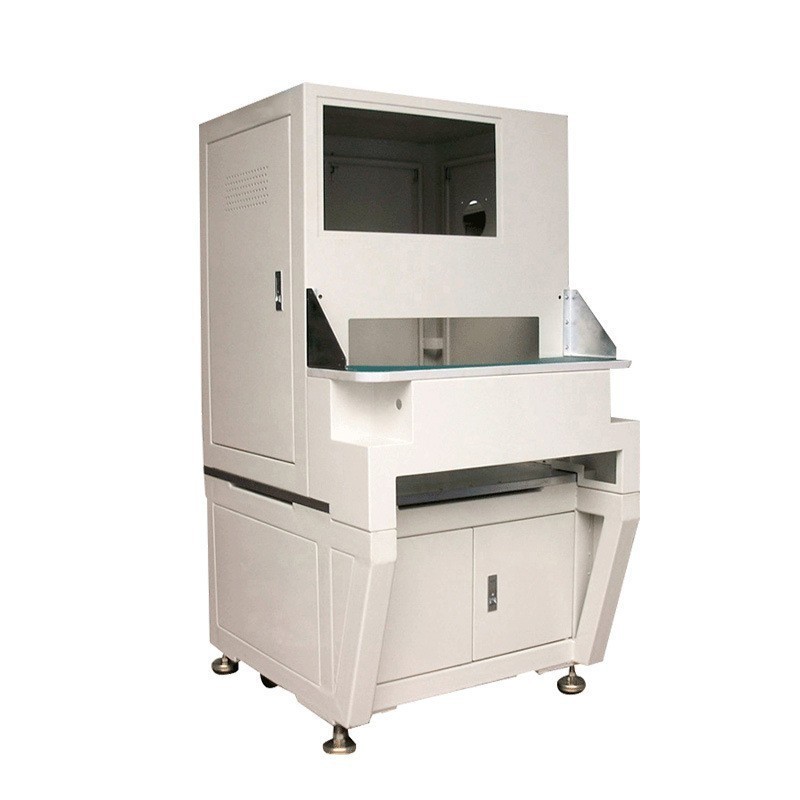

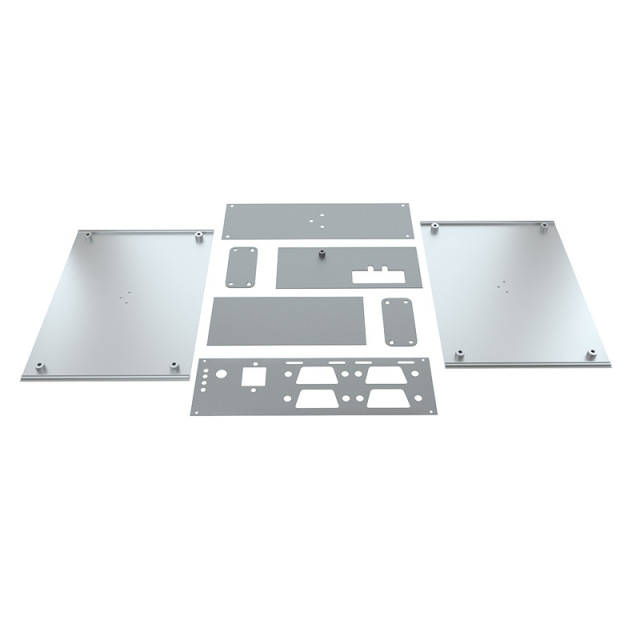

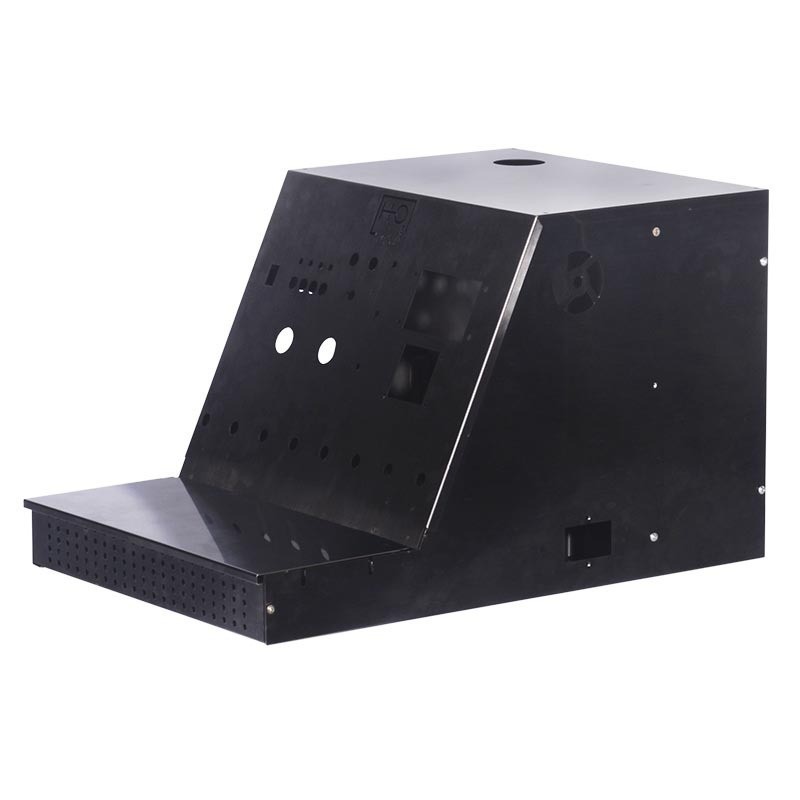

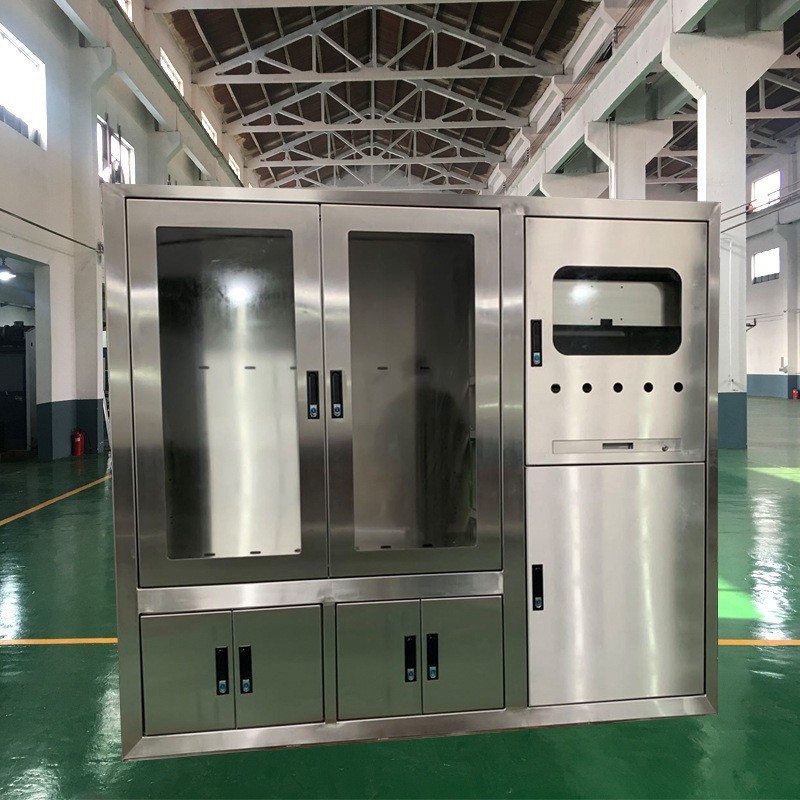

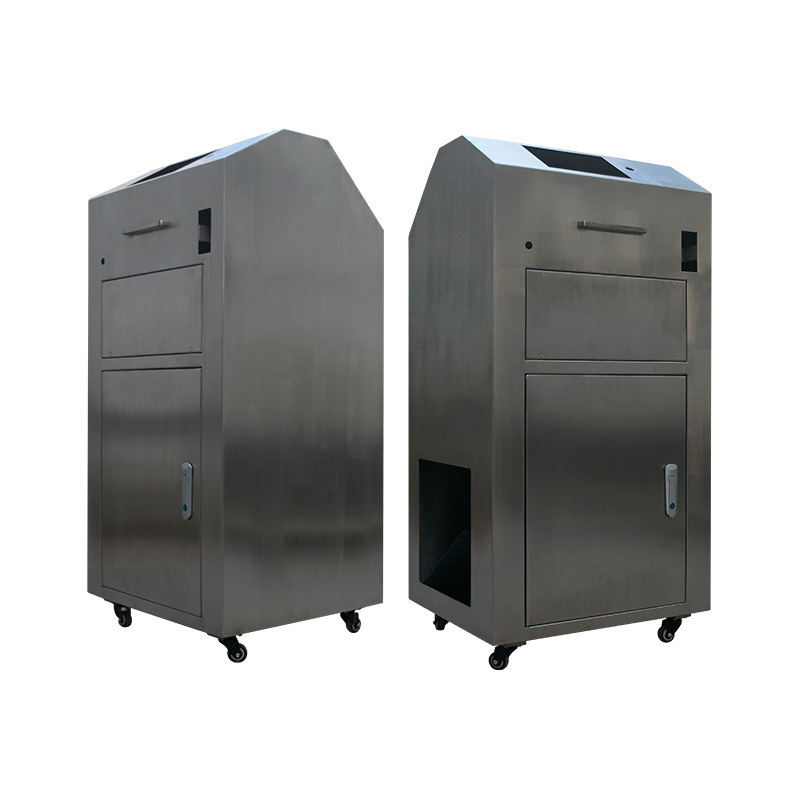

Stainless Steel Electronic Enclosure: Advanced Protection for Critical Systems
Corrosion Resistance
- Alloy Specification: 316L austenitic stainless steel with:
- 16-18% chromium content
- 10-14% nickel content
- 2-3% molybdenum additive
- Environmental Compatibility:
- Withstands continuous salt spray exposure (ASTM B117: >1000hrs)
- Resists 10% sulfuric acid solution (24hr immersion/yr loss)
Structural Reinforcement
- Mechanical Properties:
- Tensile strength: 515-690 MPa
- Elongation at break: ≥40%
- Rockwell B hardness: 85-95 HRB
- Protection Standards:
- IK10 impact resistance (EN 62262)
- IP69K ingress protection (DIN 40050-9)
Electromagnetic Shielding Architecture
Interference Mitigation
| Frequency Range | Shielding Effectiveness | |-----------------|-------------------------| | 10 kHz - 1 MHz | ≥75 dB | | 1 GHz - 10 GHz | ≥60 dB |
- Conductive Design:
- Seam welding with <0.15mm gap tolerance
- Silver-plated copper gaskets (IEC 62341 compliant)
Surface Engineering
Sanitary Design
- Finish Specifications:
- Electropolished surface (Ra ≤0.5μm)
- ASTM A480 compliant smoothness
- Cleaning Protocols:
- Autoclavable up 135°C
- Compatible with CIP/SIP processes
Environmental Compliance
Sustainability Metrics
- Recycling Efficiency:
- 100% material recovery rate
- <2% energy loss in remelting process
- Operational Lifespan:
- 25-year corrosion warranty
- <0.5% annual degradation in industrial atmospheres
Technical Specifications Tableproperties
Material Standard: ASTM A276/A479 EMC Compliance: EN 55032 Class B Thermal Conductivity: 16.3 W/m·K Maximum Dimensions: 600×400×200mm (Customizable) Weight Capacity: ≤15kg internal payload
For specific application requirements or custom configuration options, consult our technical documentation package (Revision 3.2, 2024).
